Segmented BSI Spectrometer
Coaxial HPGe detector
Serial number: 2133-14

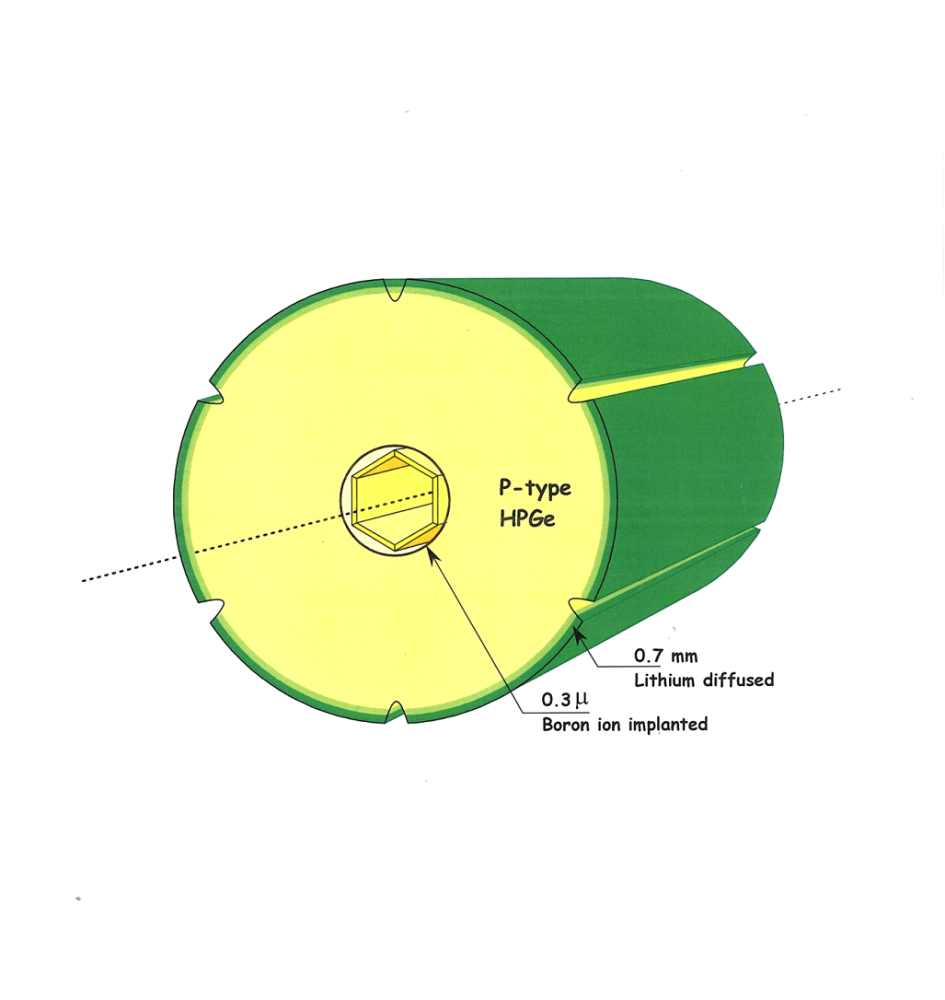

Crystal parameters: 50 mm in length, 50 mm in diameter, hole diameter is 24 mm, P-type
Энергетическое разрешение:
$FWHM_{122 keV}$ $^{57}Co$ = 1.1 keV
$FWHM_{1332 keV}$ $^{60}Co$ = 2.0 keV
High-voltage supply: minus 1500 V

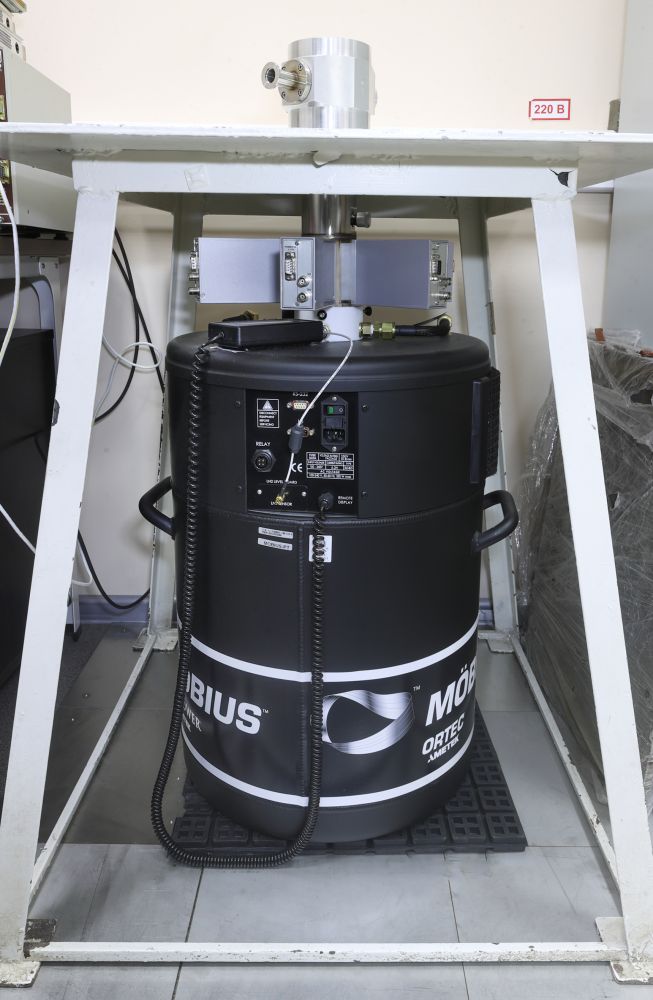

Cooling: liquid nitrogen (ORTEC MÖBIUS Recycler can be used as well)
›
Gamma Spectrometer ORTEC GMX20-70-CW
Coaxial HPGe detector
›
PAC Spectrometer
Four scintillation detectors
›
Spectrometer Canberra GR1819
Coaxial HPGe detector
›
Spectrometer ORTEC GLP 36360/13
Planar HPGe detector
›
Spectrometer Canberra GC3018
Coaxial HPGe detector
›
Spectrometer ORTEC MÖBIUS GEM-SP7025-LB-HPA-HJ-S
Low-background semi-planar HPGe detector with liquid-nitrogen recycler
›
Spectrometer SPECTROBOT
Low-background detector with the NaI crystal
›
Spectrometer Clover Canberra GC3018
Segmented HPGe detector
›
Segmented BSI Spectrometer
Coaxial HPGe detector
