Spectrometer Canberra GR1819
Coaxial HPGe detector

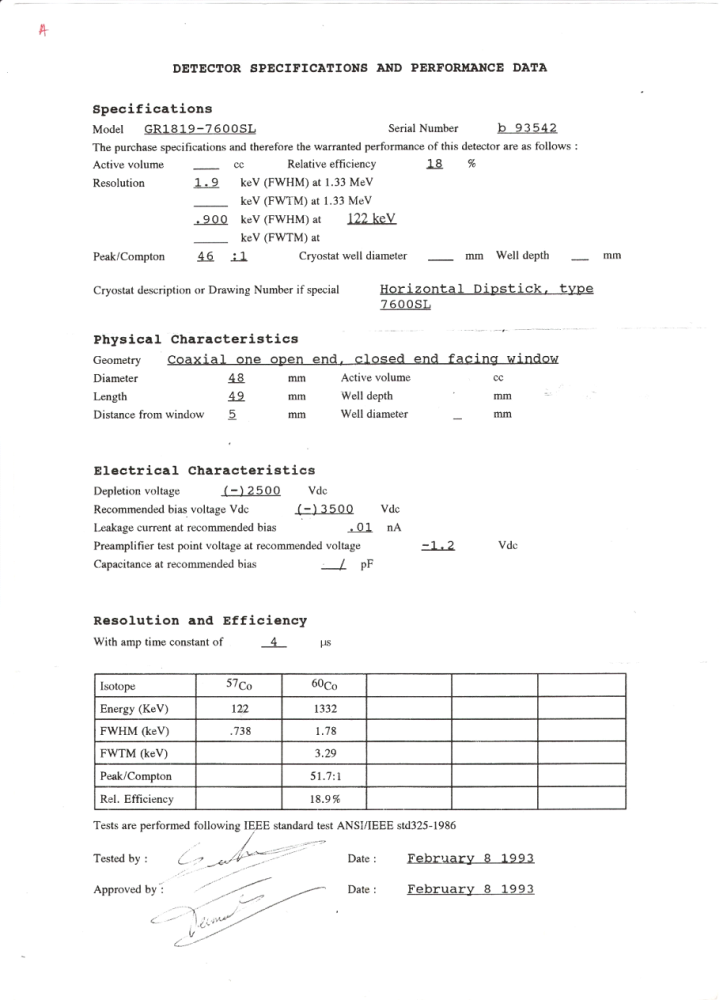

Model: Canberra GR1819
Serial number: b 93542

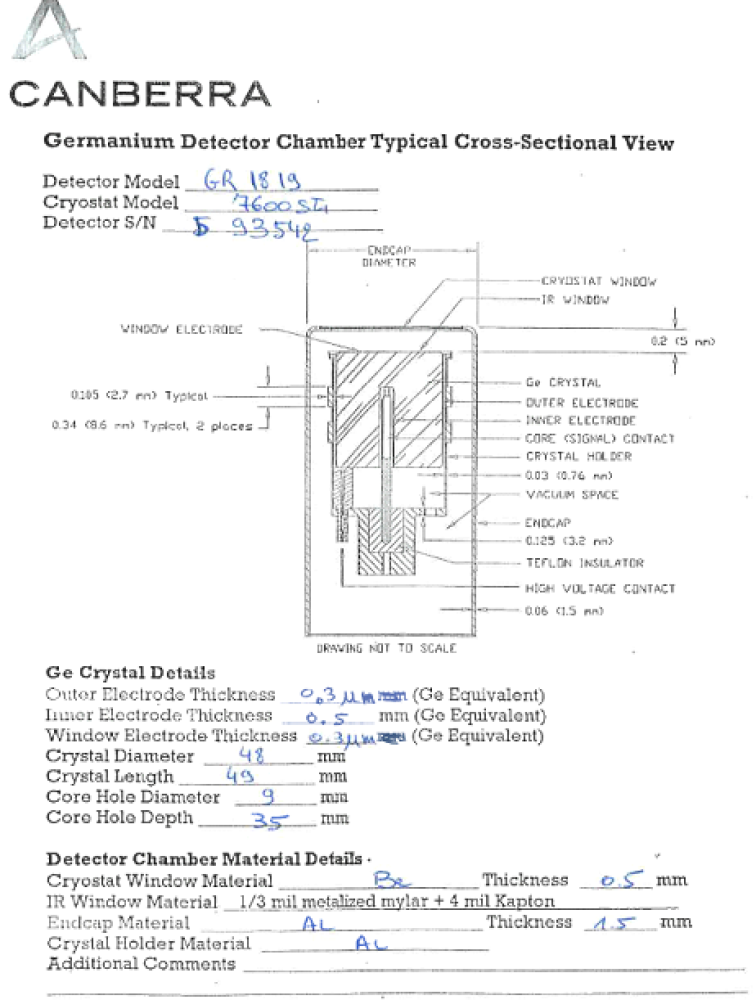

Cryostat model: 7600SL
Window: beryllium / 0.5 mm
Crystal parameters: 49 mm in length, 48 mm in diameter, N-type
Relative efficiency: 18.9 %
Time resolution:
$FWHM_{122 keV}$ $^{57}Co$ = 0.74 keV
$FWHM_{1332 keV}$ $^{60}Co$ = 1.8 keV
High-voltage supply: minus 3500 V
Cooling: liquid nitrogen

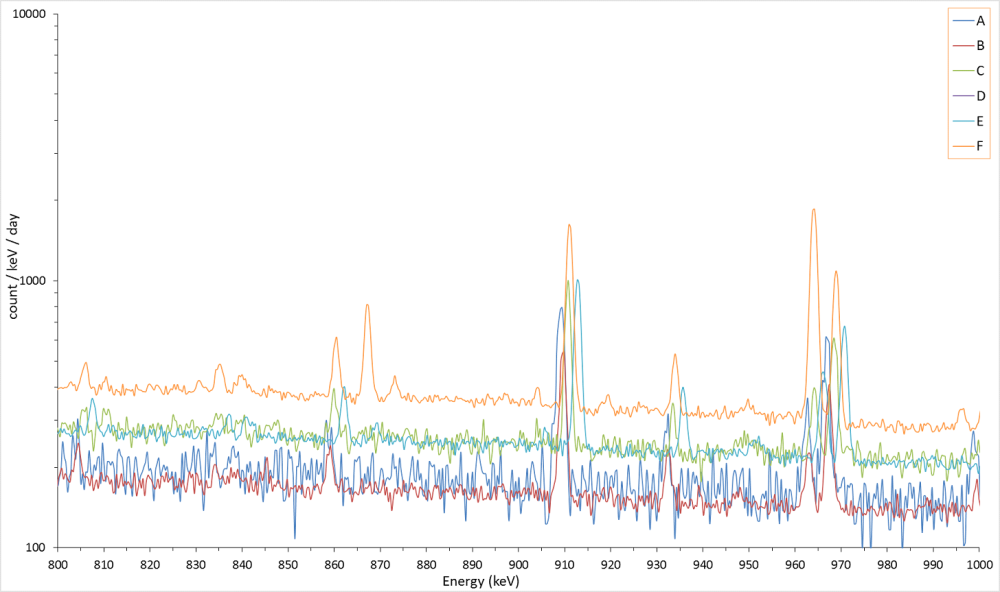

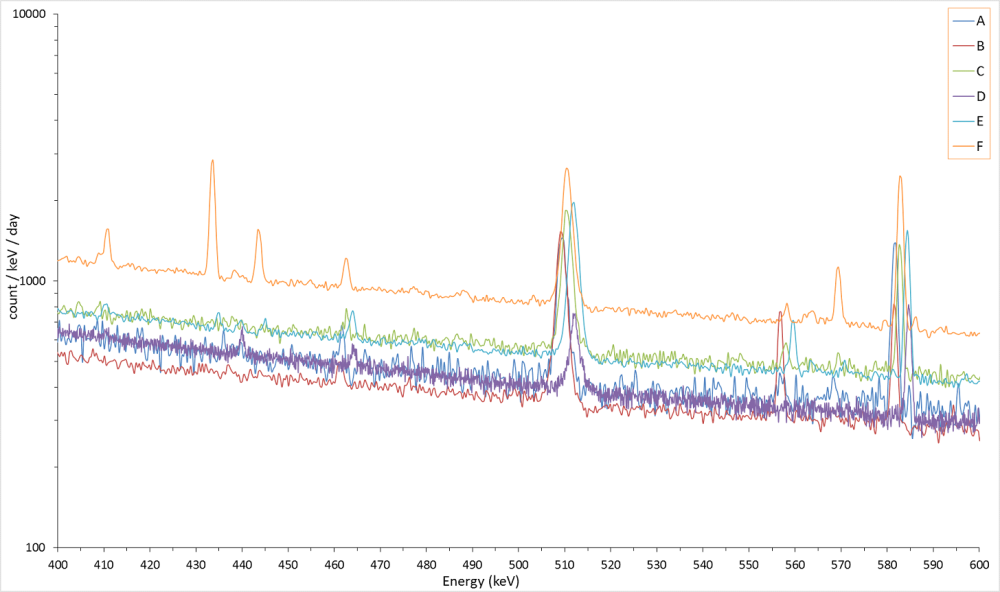

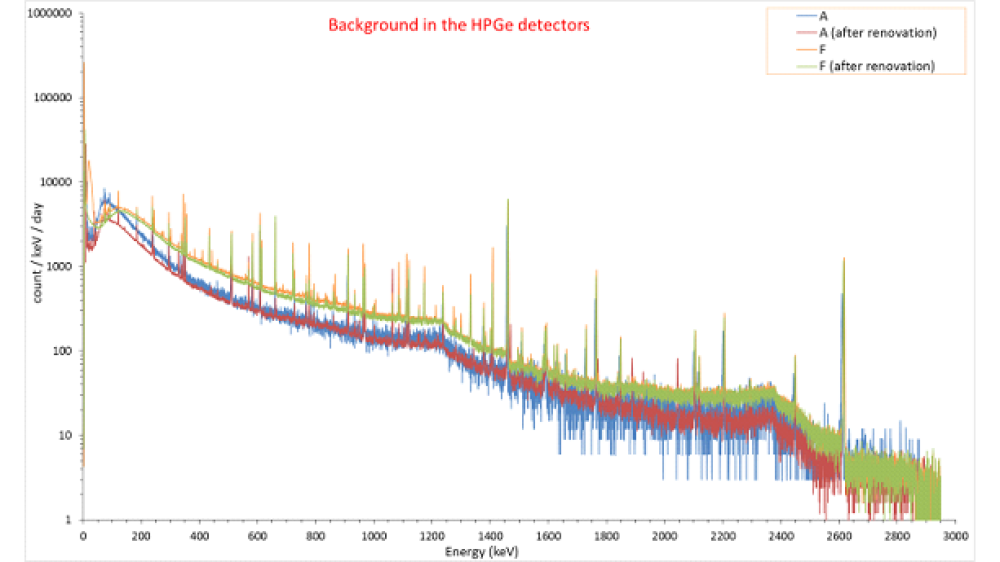

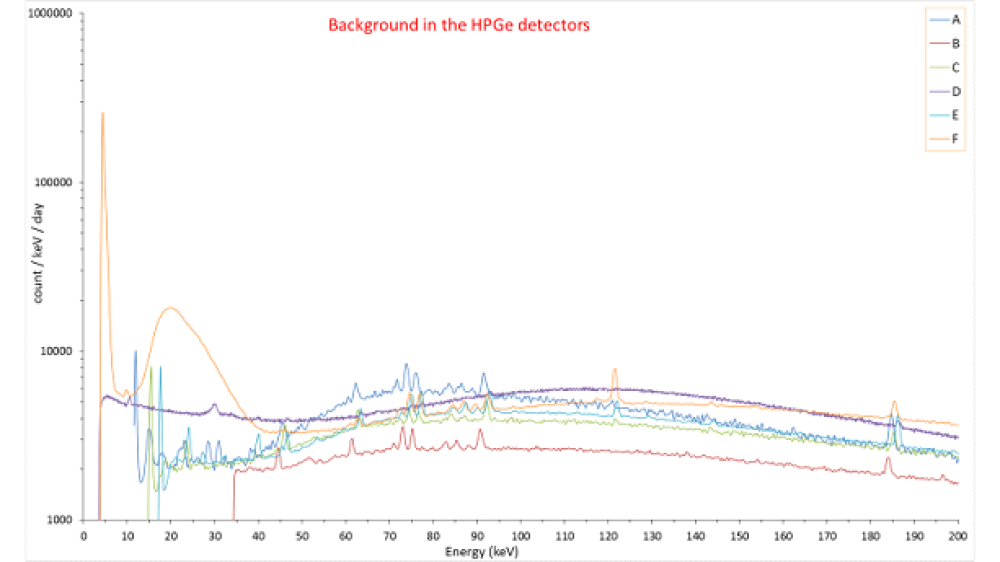

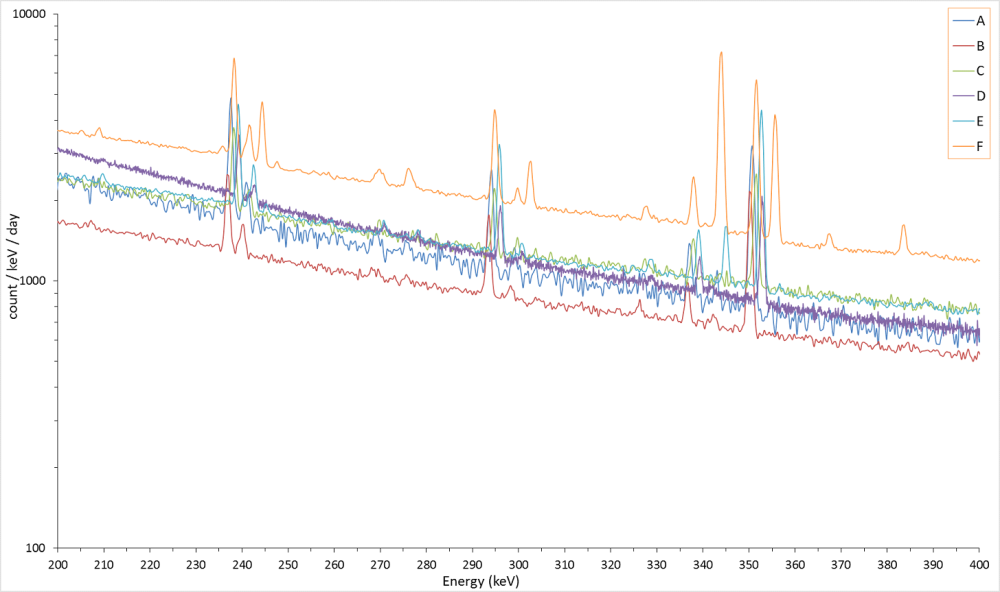

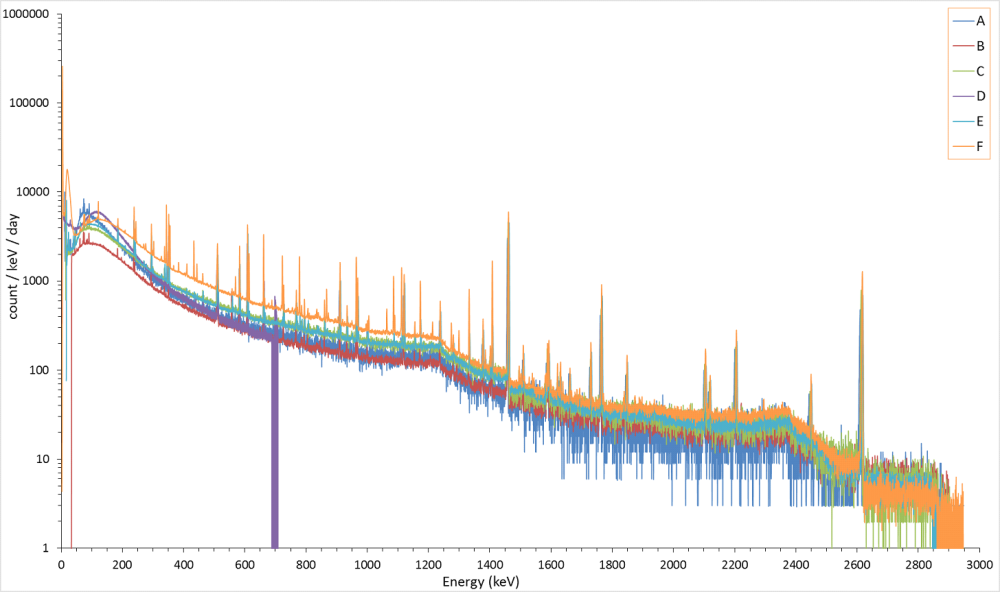

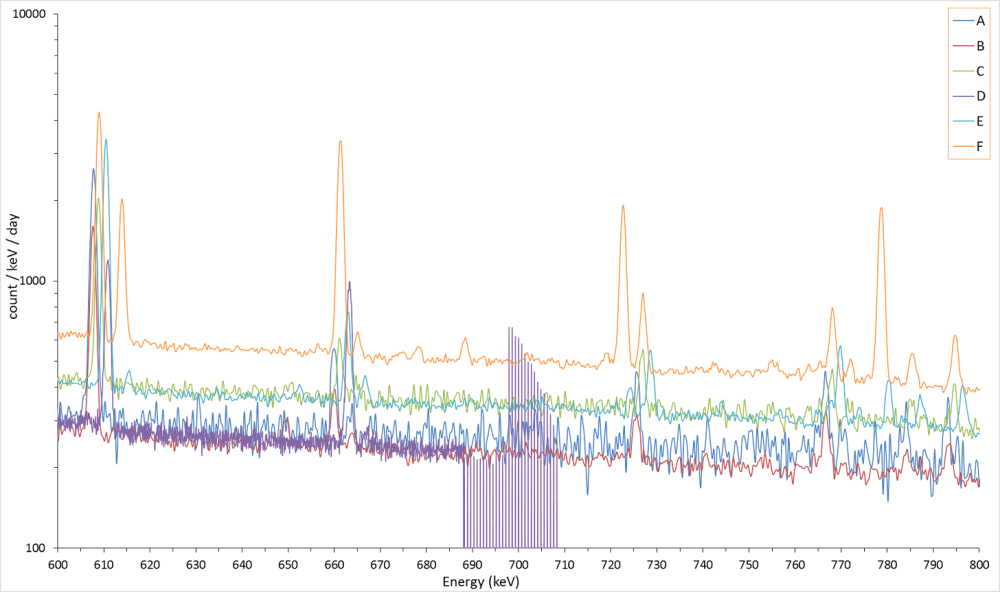

In the diagrams:
- Detector А — Spectrometer Canberra GR1819
- Detector D — Spectrometer ORTEC GLP 36360/13
- Detector F — Spectrometer Canberra GC3018
›
