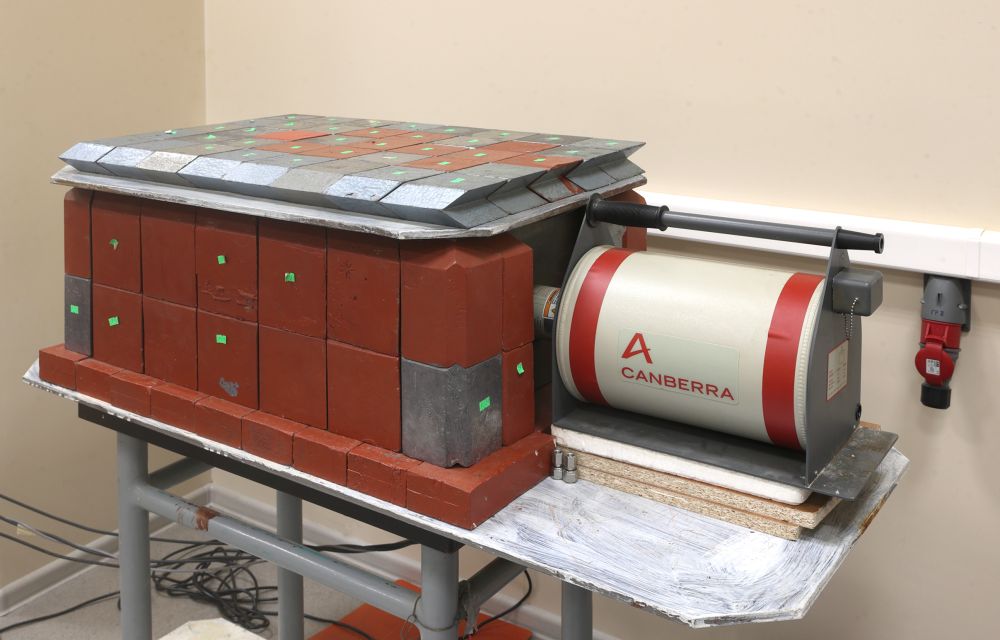

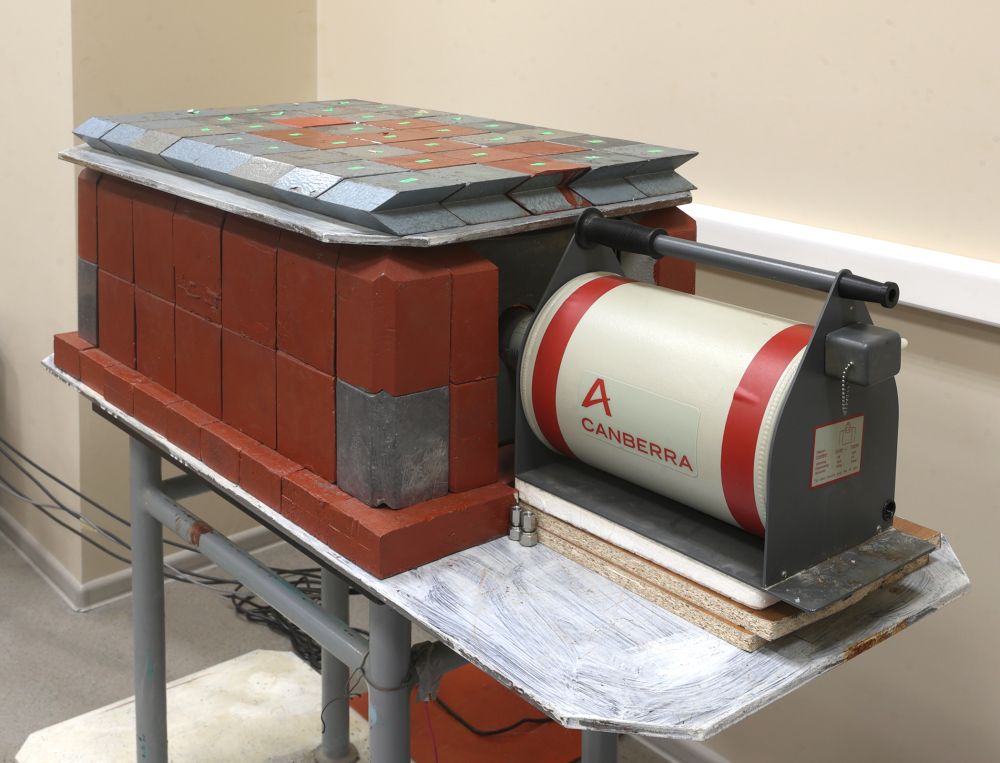

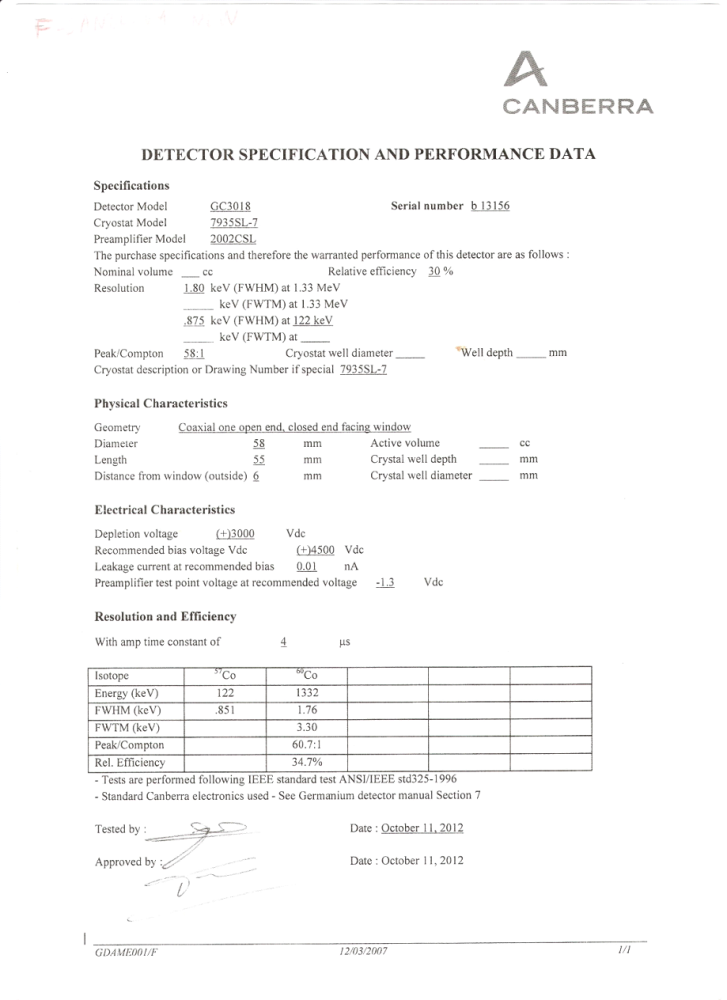

Spectrometer Canberra GC3018
Coaxial HPGe detector
Model: Canberra GC3018
Serial number: b 13156
Cryostat model: 7935SL-7
Crystal parameters: 55 mm in length, 58 mm in diameter, P-type
Relative efficiency: 35 %
Energy resolution:
$FWHM_{122 keV}$ $^{57}Co$ = 0.88 keV
$FWHM_{1332 keV}$ $^{60}Co$ = 1.8 keV
High-voltage supply: plus 4500 V
Cooling: liquid nitrogen
›
Gamma Spectrometer ORTEC GMX20-70-CW
Coaxial HPGe detector
›
PAC Spectrometer
Four scintillation detectors
›
Spectrometer Canberra GR1819
Coaxial HPGe detector
›
Spectrometer ORTEC GLP 36360/13
Planar HPGe detector
›
Spectrometer Canberra GC3018
Coaxial HPGe detector
›
Spectrometer ORTEC MÖBIUS GEM-SP7025-LB-HPA-HJ-S
Low-background semi-planar HPGe detector with liquid-nitrogen recycler
›
Spectrometer SPECTROBOT
Low-background detector with the NaI crystal
›
Spectrometer Clover Canberra GC3018
Segmented HPGe detector
›
Segmented BSI Spectrometer
Coaxial HPGe detector
