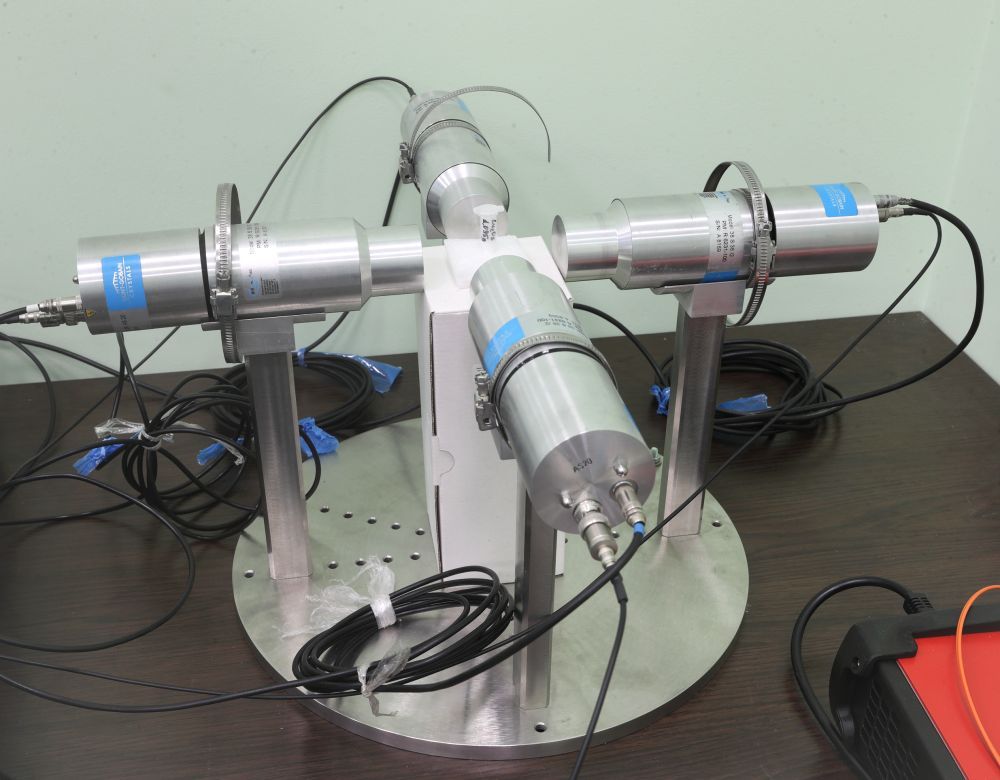

PAC Spectrometer
Four scintillation detectors
Parameters of the crystals:
$LaBr_{3}$ — 25 x 25 mm
$BaF_{2}$ — 76 х 76 mm
$SrI_{2}$ — 38 x 38 mm
Energy resolution:
$LaBr_{3}$ — $FWHM_{662 keV}$ $^{137}Cs$ = 20 keV
$BaF_{2}$ — $FWHM_{662 keV}$ $^{137}Cs$ = 70 keV
$SrI_{2}$ — $FWHM_{662 keV}$ $^{137}Cs$ = 25 keV
Time resolution: ~1 ns
High-voltage supply: up to ± 2000 V
›
Gamma Spectrometer ORTEC GMX20-70-CW
Coaxial HPGe detector
›
PAC Spectrometer
Four scintillation detectors
›
Spectrometer Canberra GR1819
Coaxial HPGe detector
›
Spectrometer ORTEC GLP 36360/13
Planar HPGe detector
›
Spectrometer Canberra GC3018
Coaxial HPGe detector
›
Spectrometer ORTEC MÖBIUS GEM-SP7025-LB-HPA-HJ-S
Low-background semi-planar HPGe detector with liquid-nitrogen recycler
›
Spectrometer SPECTROBOT
Low-background detector with the NaI crystal
›
Spectrometer Clover Canberra GC3018
Segmented HPGe detector
›
Segmented BSI Spectrometer
Coaxial HPGe detector
