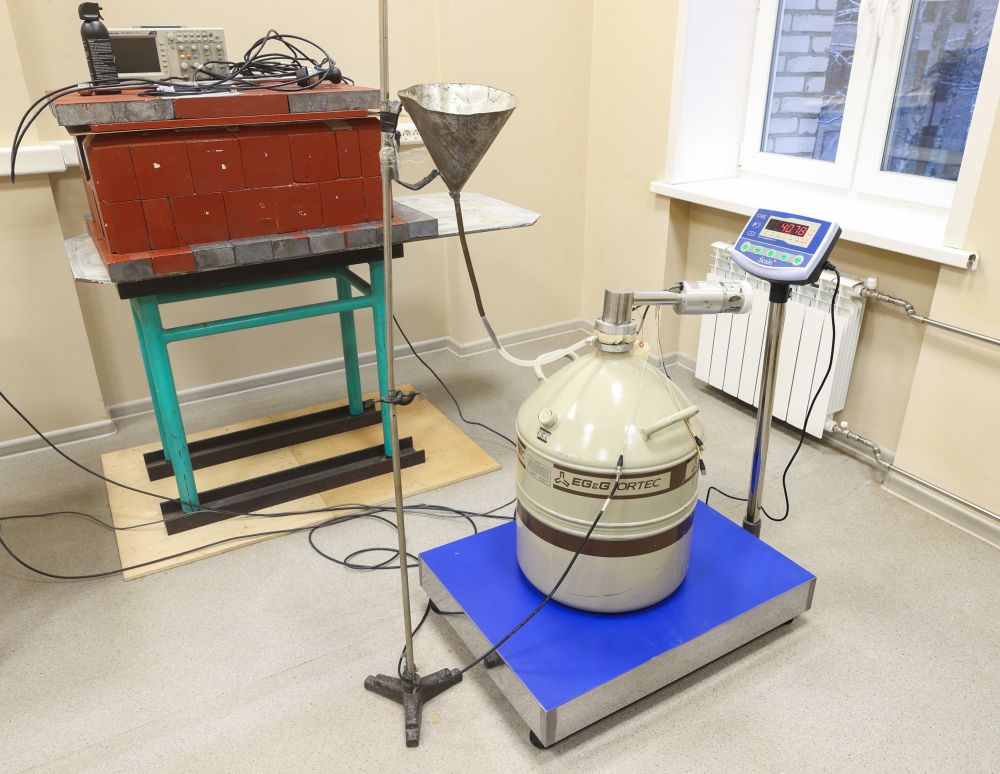

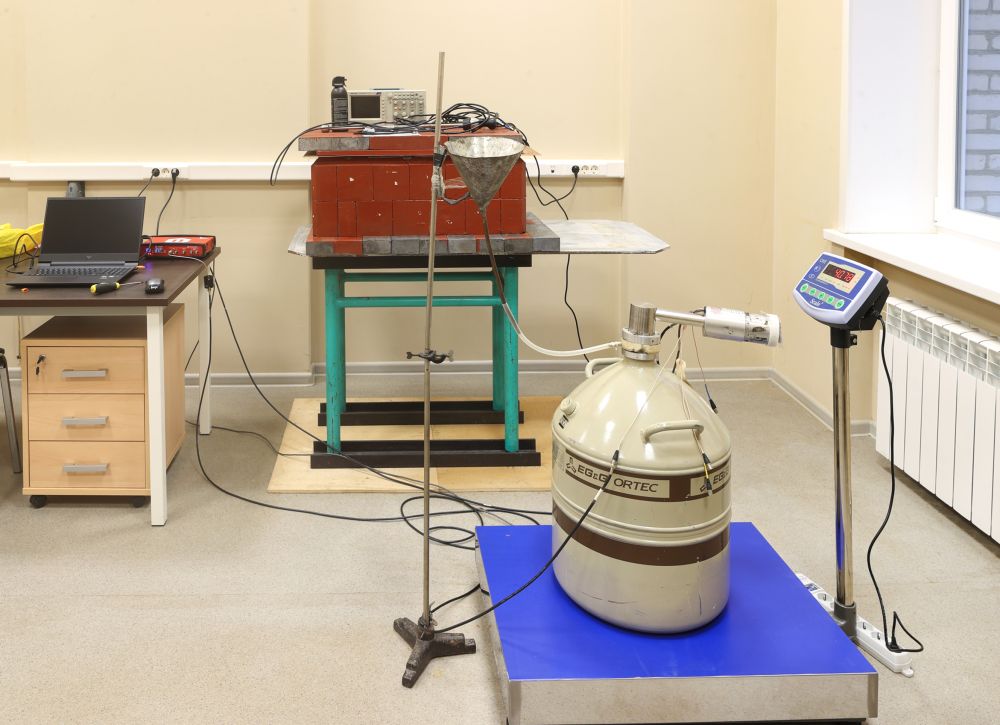

Spectrometer ORTEC GLP 36360/13
Planar HPGe detector
Model: GLP 36360/13
Serial number: 39-E252

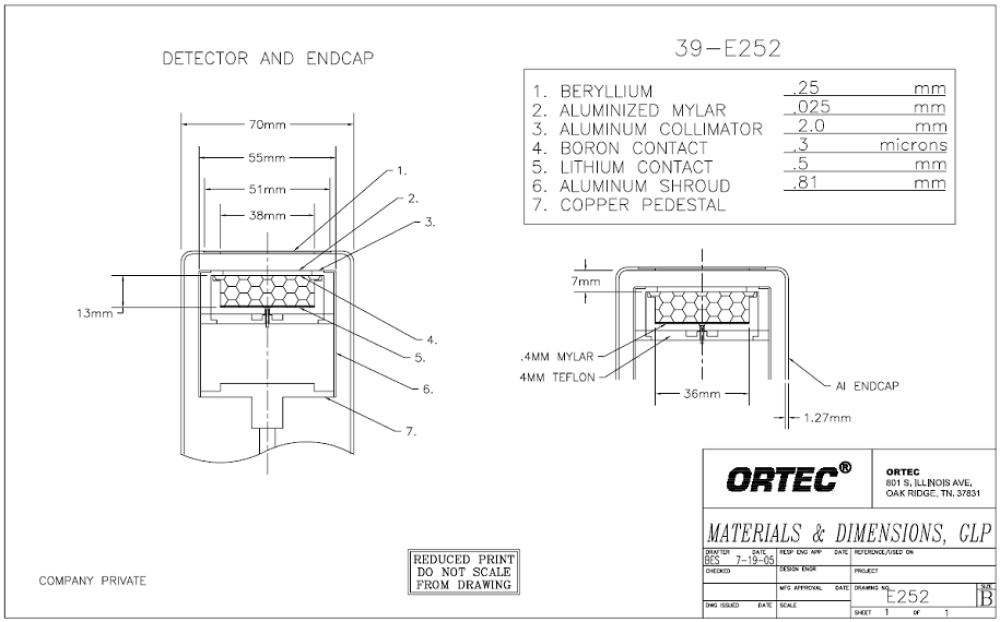

Cryostat model: 3H-GLP
Window: beryllium / 0.254 mm
Crystal parameters: 13 mm in length, 36 mm in diameter, N-type

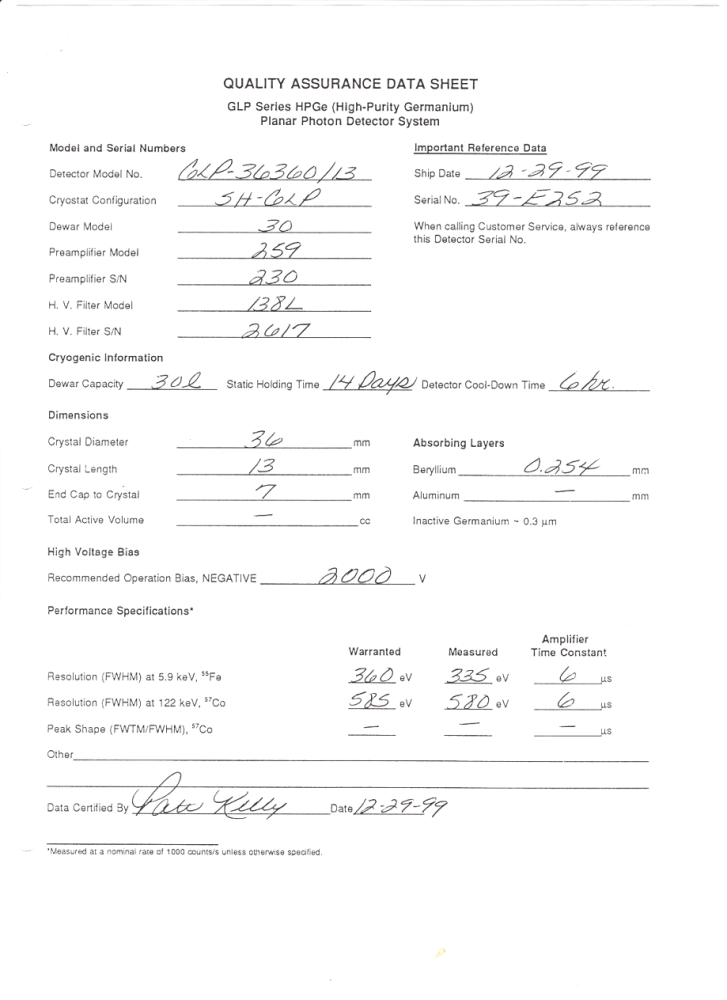

Energy resolution:
$FWHM_{5.9 keV}$ $^{55}Fe$ = 0.335 keV
$FWHM_{122 keV}$ $^{57}Co$ = 0.580 keV
High-voltage supply: minus 2000 V
Cooling: liquid nitrogen
›
Gamma Spectrometer ORTEC GMX20-70-CW
Coaxial HPGe detector
›
PAC Spectrometer
Four scintillation detectors
›
Spectrometer Canberra GR1819
Coaxial HPGe detector
›
Spectrometer ORTEC GLP 36360/13
Planar HPGe detector
›
Spectrometer Canberra GC3018
Coaxial HPGe detector
›
Spectrometer ORTEC MÖBIUS GEM-SP7025-LB-HPA-HJ-S
Low-background semi-planar HPGe detector with liquid-nitrogen recycler
›
Spectrometer SPECTROBOT
Low-background detector with the NaI crystal
›
Spectrometer Clover Canberra GC3018
Segmented HPGe detector
›
Segmented BSI Spectrometer
Coaxial HPGe detector
