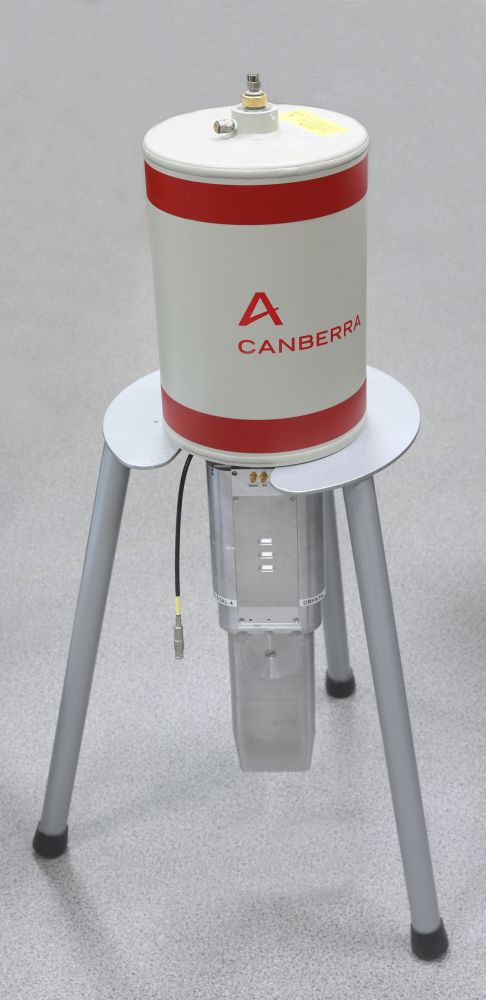

Spectrometer Clover Canberra GC3018
Segmented HPGe detector
Model: Clover Canberra GC3018 (four HPGe crystals inside the cryostat)
Serial number: b 13156
Cryostat model: 7935SL-7

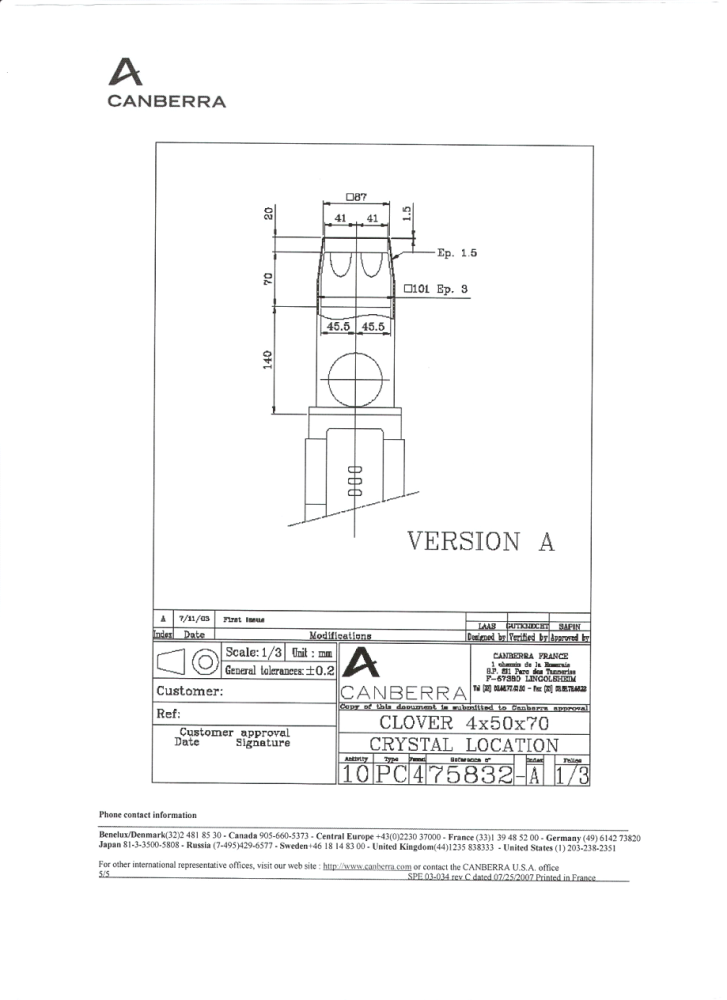

Crystal parameters: 70 mm in length, 50 mm in diameter, N-type
Relative efficiency: ~ 20 % (of each crystal)

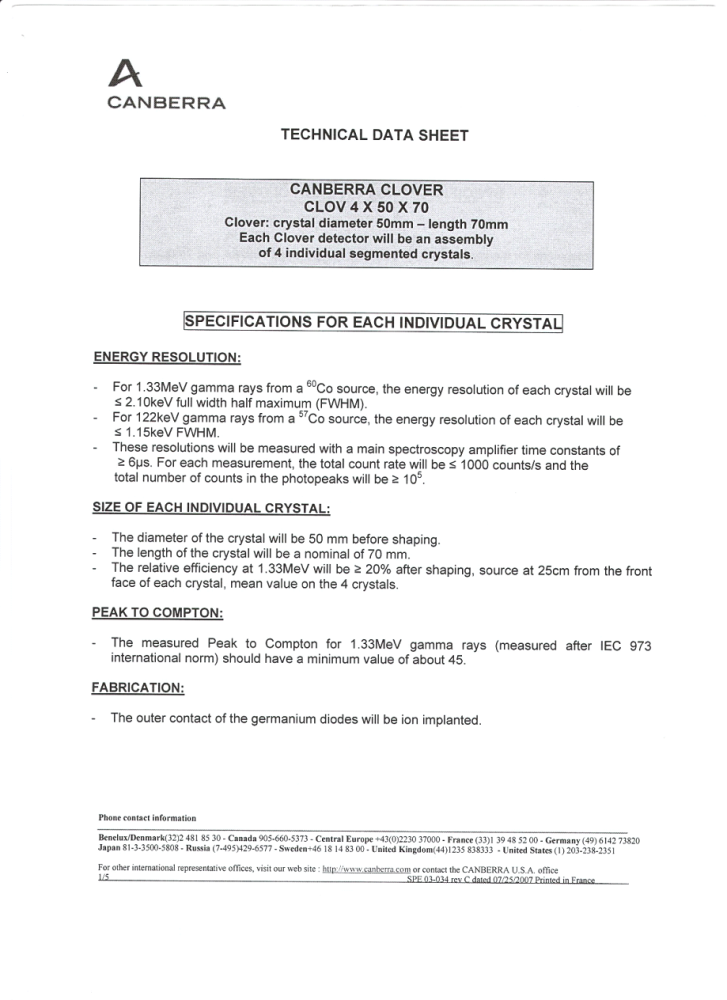

Energy resolution:
$FWHM_{122 keV}$ $^{57}Co$ = 1.15 keV
$FWHM_{1.33 MeV}$ $^{60}Co$ = 2.1 keV
High-voltage supply: plus 3000 V (for each detector)
Cooling: liquid nitrogen
›
